Starting to Have a Roof

June 29, 2010

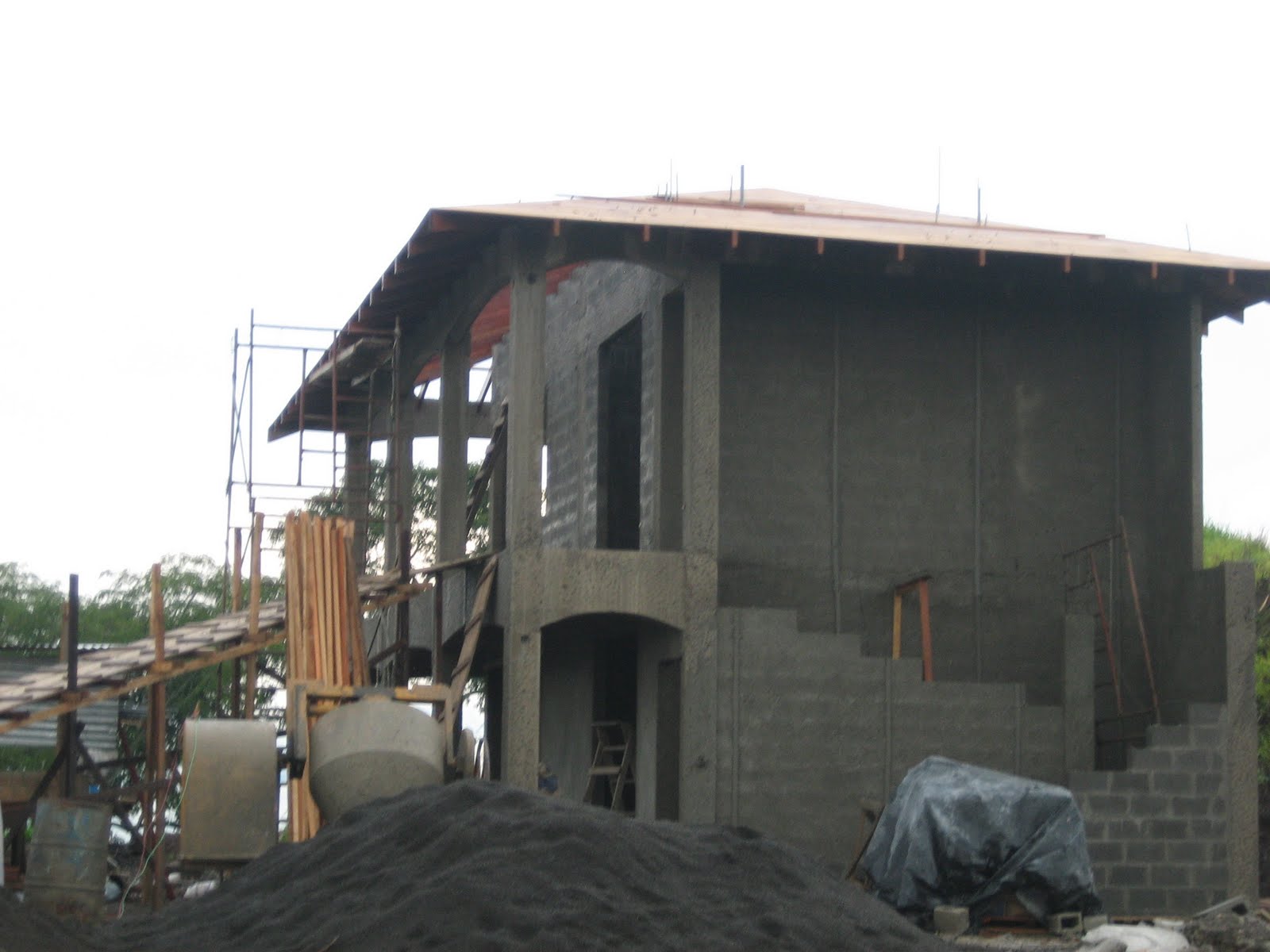

In spite of having been rained out a couple of days, Luis is making sure that the roof is going up on this project. The support beams are in place and secured with cement, and they are now installing the laurel boards.

This is what it looks like from the inside















In addition, they are working to put the finish coats of cement on the walls.

According to Luis, they are still on schedule in spite of the rain..

A Few Pieces of Wood Going Into Place

June 21, 2010

Luis is starting to put the beams up for the roof above the second story.

Now, remembering back we tore down the original structure that was on the property and tried to salvage what we could. In the process that Luis uses, the beams are sanded down, stained and then protected. This is an example, and I think it could be one of the old beams from the salvage. - Look's pretty good I would say.

This is a stack of Laurel that will be used for the ceilings in the house. They are stacked this way to let them dry out. Then they will also be sanded and stained.

While they are working on the beams, other guys are working to put the coats of cement on the block walls. There will be several coats of cement applied before the finishing coat is applied.











Once the roof is on, then they will lay the floor for the lower level. Stay with us to see the finished product...

Getting Ready for The Crown for The Second Story

June 7, 2010

The men seem to make more and more progress every day.

As you can see, the block for the second floor is about done. They are now putting up the forms for the arches on the second floor balcony. Check out the other pictures below.

June 10, 2010

A couple of days later, all the re-rod for the crown is in place. Then, they will frame it in and make the pour for the concrete crown. This should be done by the middle of next week.

This shot gives you a better glimpse of how the re-rod is set in place.

After the crown is set they will begin installing the Almond beams for the roof structure. This type of wood is very hard and insect resistant. - Stay tuned..

Great Progress on the Second Story

Friday - June 4, 2010

It has only been a few days and the walls are not too far away from completion. Here, you can see that they only have a few more layers to go. The forms you see are where they will pour solid concrete for the structural support.

To the left, is Luis checking to make sure things are level. Also, you can see the pillars have been poured for the roof over the upper deck.

Now, this is a big thing - This is the electrician preparing to install the main electrical box for the house. When it is installed, they will begin running all the wiring for both units.

The pictures below give an idea of how the casita sits on the lot from a curb view and how the arch of the pillars look.

From the way it looks at this point - we are not too many weeks away from starting the roof phase of the project..

Starting the Second Story

These guys are not messing around. The floor and crown was laid late last week, and now they are starting to lay the block for the second story.

Here is Luis working on the materials the men need to do the work

  .

Above, is the finished crown from the interior view of the living room. At this point, all the structure has been tied in together and secure,

As the followers of this site can see, they are going strong now, and I am very happy with the progress
